Small Circular LCD Display , Round LCD Module Spi MCU Interface 1.22 Inch

Name: Small Circular LCD Display Round LCD Module Spi MCU Interface 122 Inch
Brand: SAEF
Price: 1 USD

China Small Circular LCD Display , Round LCD Module Spi MCU Interface 1.22 Inch wholesale

Brand Name : SAEF

Model Number : SF-TC122B-8175A-N

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : Negotiable based on order lot quantity

Payment Terms : L/C, , T/T, Western Union

Supply Ability : 3000K pcs per month

Delivery Time : 3-5 weeks

Packaging Details : Standard Exportation Package

Product : 1.22 inch round(circular) TFT display

Touch screen : without touch (with CTP optional )

Resolution : 240*204 dots

Cover Glass Dimension : Customizable

Viewing Direction : IPS ( all viewing angle )

Interface : SPI

Pin number : 13 pins

Outline Dimension : 33.66 x 33.02 x 1.5 mm

Connection : ZIF

Surface Luminance : 200 cd/m2(nits)

LED lifetime : 40,000 hours

Compliance : REACH & RoHS Compliant

Contact Now

SF-TC122B-8175A-N SPECIFICATION.pdf
1.22 inch round LCD, Circular TFT LCD 1.22"

SF-TC122B-8175A-N is a 1.22 inch diagonal 240x204 full color round TFT LCD screen display. it supports SPI interface, widely used for Wearable devices, Round Display, MP3 player, Handheld devices etc. For easy connection to your host, the FFC/FPC tail mates with easy-to-find ZIF sockets.

SF-TC122B-8175A-N is circular mode TFT-LCD featured with brightness 200 nits (typical value). it can be operated at temperatures from -20°C to +70°C, its storage temperatures range from -30°C to +80°C. as 1.22 inch round TFT display module widely used in various application, we customize spi mcu RGB interface with different length of tail. drawings as below for your detailed checking.

Product:	1.22 Inch Round(circular) TFT Display	Touch Screen:	Without Touch (with CTP Optional )
Resolution:	240*204 Dots	Cover Glass Dimension:	Customizable
Viewing Direction:	IPS ( All Viewing Angle )	Interface:	SPI
Pin Number:	13 Pins	Outline Dimension:	33.66 X 33.02 X 1.5 Mm
Connection:	ZIF	Surface Luminance:	200 Cd/m2(nits)
LED Lifetime:	40,000 Hours	Compliance:	REACH & RoHS Compliant

1.22 inch round LCD, Circular TFT LCD 1.22" Drawing

as to above drawing, whose part number is SF-TC122B-8532A-N, it supports SPI interface.

as to above drawing, whose part number is SF-TC122B-8807A1-N, it supports SPI interface.

as to above drawing, whose part number is SF-TC122B-8266-N, it supports MCU interface.

as to above drawing, whose part number is SF-TC122B-8811A-N, it supports RGB interface.

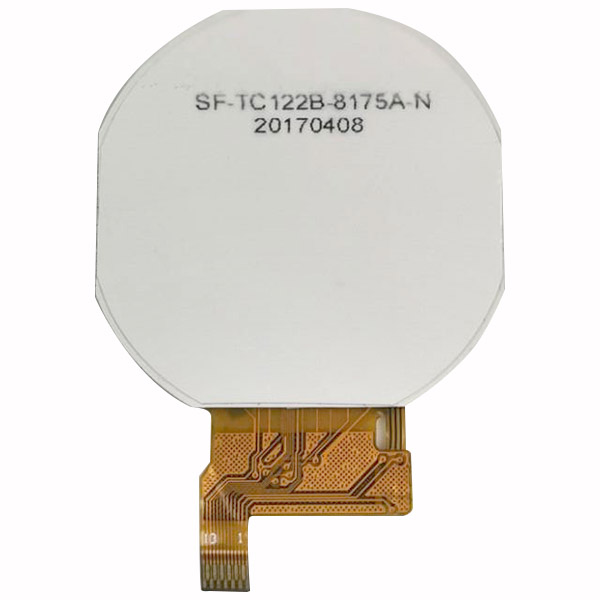

1.22 inch round LCD, Circular TFT LCD 1.22" Real Product Image

SF-TC122B-8175A-N has been designed with Capacitive touch screen, 1.22 inch TFT with ctp, its part number is SF-TC122B-8175A-CT.

PIN DESCRIPTION

TECHNICAL PARAMETERS

Similar product for your design

SIZE	DETAILS	OUR P/N
1.22 inch	different FPC tail, SPI interface	SF-TC122B-8532A-N
1.22 inch	different FPC tail, SPI interface	SF-TC122B-8807A1-N
1.22 inch	different FPC tail, MUC interface	SF-TC122B-8266-N
1.22 inch	different FPC tail, RGB interface	SF-TC122B-8811A-N
1.22 inch	with CTP version, SPI interface	SF-TC122B-8175A-CT
